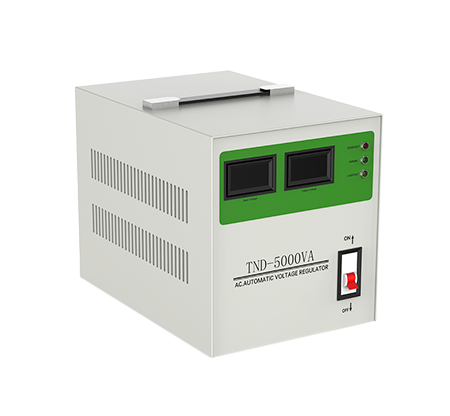

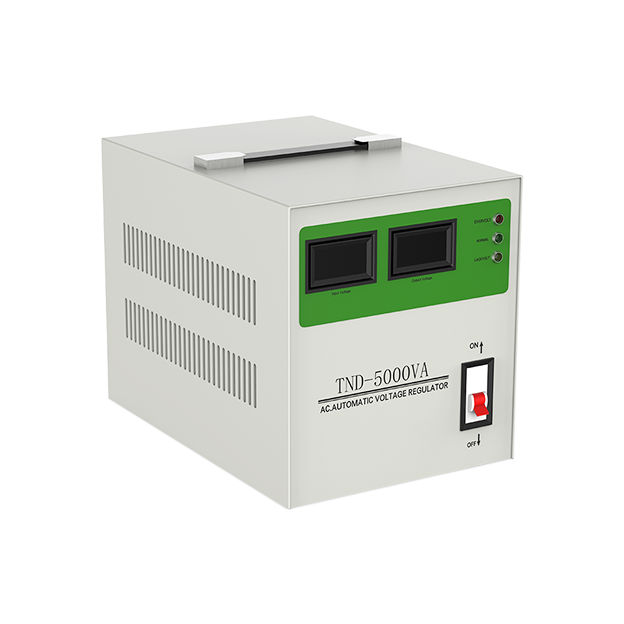

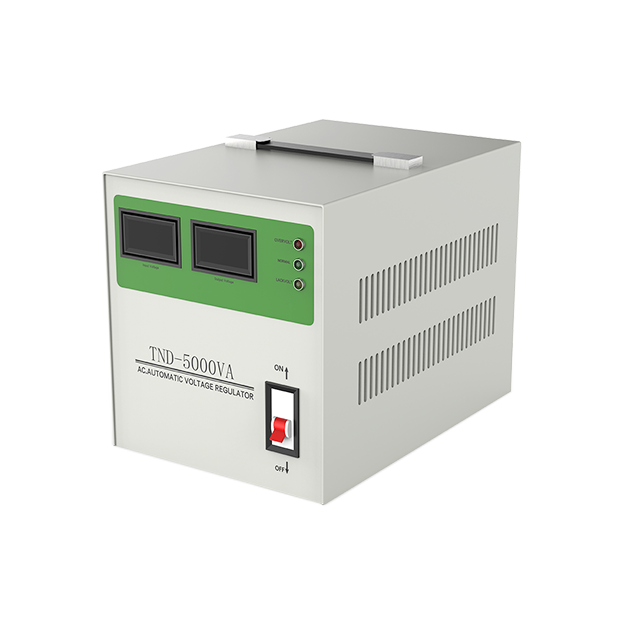

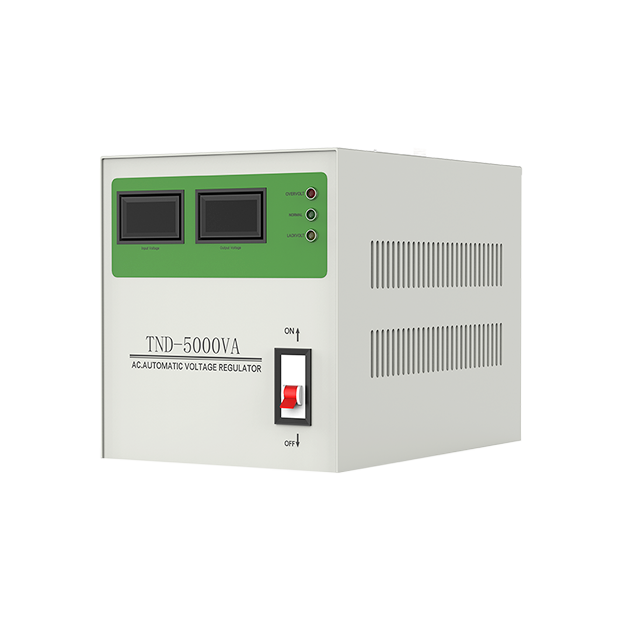

Gweike 5kw Single-phase full-automatic AC Voltage Regulator
Gweike 5kw Single-phase full-automatic AC Voltage Regulator
Precio habitual
€0,00
Precio de oferta
€0,00
Precio habitual
Precio unitario
por
Payments:
No se pudo cargar la disponibilidad de retiro
Gweike 5kw single-phase full-automatic AC voltage regulator is composed of contact voltage regulator, sampling control circuit and servo motor. When the grid voltage is unstable or the load changes, the sampling control circuit performs sampling, sends a signal to drive the servo motor to rotate in the required direction, adjusts the position of the carbon brush of the voltage regulator, and adjusts the output voltage to the rated value and reaches a stable State.
Technical Parameter
- Input Voltage
140V~260V 5kVA
- Output Voltage
220V±3%110V士4%
- Phase
single
- Frequency
50Hz/60Hz
- Adjust Time
>15V/s
- Maximum rated
5.0
- Output Current
22A
- Overvoltage Protection
245土5V
- Ambient temperature
一5～+40℃
- Temperature rise
<60℃ Under full load condition
- Waveform distortion
No additional waveform distortion
- Effectiveness
>95%
